Trusted Jeep Head Gasket Replacement & Engine Sealing Specialists in Musaffah

Combustion Leak Diagnosis & Engine Pressure Testing

The PCM monitors coolant temperature and misfire frequency across all Jeep engines. A chemical indicator test detects hydrocarbons in the coolant tank, confirming a gasket breach. OBD-II tools retrieve stored DTCs. A cylinder leakdown test identifies which cylinder is losing compression before disassembly.

Cylinder Head Removal & Inspection

Cylinder head removal requires draining coolant, disconnecting the fuel rail, releasing vacuum lines, and removing the timing chain or belt. Each head is inspected for warping, combustion chamber cracks, and valve seat recession. Warpage beyond 0.05 mm per 150 mm span requires precision surface grinding before refitting.

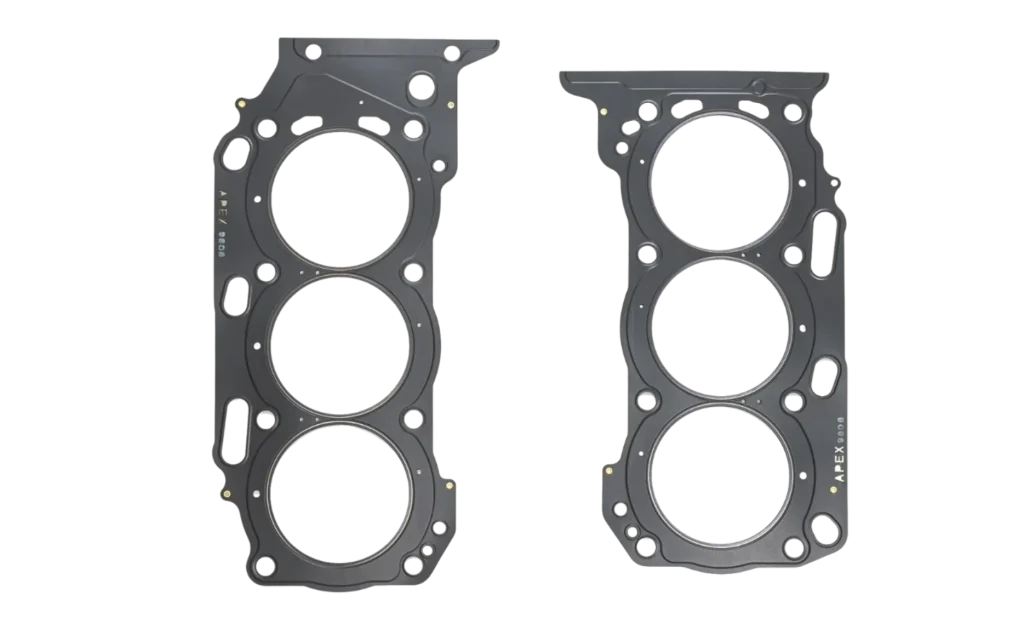

Multi-Layer Steel (MLS) Head Gasket Replacement

MLS gaskets contain three to five laminated steel layers with embossed sealing beads. They conform to surface irregularities under correct clamping load. Gasket selection matches the engine bore diameter and fire ring thickness. Incorrect thickness shifts the compression ratio, affecting detonation thresholds on turbocharged and EcoDiesel units.

Torque-to-Yield (TTY) Head Bolt Replacement

TTY head bolts are single-use fasteners that permanently stretch during initial torquing. They must be replaced after every head removal. Reusing TTY bolts reduces clamping load by up to 25%. Replacement follows a three-stage sequence verified with a torque angle meter.

Cylinder Head Resurfacing & Flatness Verification

A warped cylinder head prevents the MLS gasket from sealing combustion chambers and coolant passages correctly. Surface grinding removes material in 0.01 mm increments to restore flatness. A precision straight edge is applied at six points across the head face before reassembly proceeds.

Cooling System Pressure Test & Bleed Procedure

A calibrated tester applies 110 to 140 kPa to the cooling circuit and holds pressure for 15 minutes. This confirms head gasket seal integrity across all connections. The system is filled with OEM coolant at 50:50 concentration. Air is purged by running the engine with the expansion tank cap removed.

Intake Manifold Gasket Replacement

The intake manifold gasket seals the inlet plenum to the cylinder head ports. On the 3.6L Pentastar V6, rubber-coated plastic gaskets are replaced during head gasket service. This prevents vacuum leaks that cause rough idling and P0171 or P0174 fault codes. Manifold bolts are torqued to 12 Nm in the outward-spiral sequence.

Exhaust Manifold Gasket & Stud Replacement

Exhaust manifold gaskets endure repeated thermal cycling, compressing the sealing material and causing exhaust leaks over time. Corroded studs are extracted using penetrating fluid, heat, and stud extractors. Replacement studs are installed to the correct thread depth. Manifold nuts are torqued to OEM specification to prevent distortion.

Valve Stem Seal Replacement

Worn valve stem seals allow oil to migrate into the combustion chamber along the valve guide. This produces blue exhaust smoke under deceleration. It also raises oil consumption above 0.5 to 1.0 litres per 10,000 km. A dedicated seal driver ensures each new seal seats at the correct depth.

Thermostat & Coolant Temperature Sensor Service

A sticking thermostat forces the engine outside its normal operating range of 88 to 107 degrees Celsius. This increases head gasket stress through repeated thermal shock. The thermostat, housing gasket, and CTS are replaced during service. OBD-II live data confirms correct sensor output across the full temperature range.

Timing Chain or Belt Resetting & Tensioner Inspection

Head removal requires detaching the timing chain or belt from the camshaft sprocket. Refitting follows OEM timing mark alignment to within one tooth on both sprockets. Tensioner condition, chain guide wear, and belt tensioner bearing play are all assessed. Worn tensioner components cause chain slap or belt skip within 5,000 km.

Post-Repair Engine Run-In & Road Test

After head gasket replacement, a controlled warm-up cycle allows the MLS gasket to seat properly under thermal expansion. Coolant level is rechecked at 5, 15, and 30 minutes of operation. A 15 to 20 km road test confirms stable idle, correct coolant temperature, no exhaust smoke, and no returning fault codes.

• Complete Two Full Warm-Up Cycles Before Highway Driving: Drive below 80 km/h for the first 50 km to allow the MLS gasket to seat correctly under thermal cycling.
• Monitor Coolant Level Daily for the First 1,000 km: Check the expansion tank every day. A drop exceeding 50 ml suggests an unpurged air pocket or secondary sealing issue.
• Avoid Hard Acceleration for the First 500 km: Allow TTY head bolts and the MLS gasket to stabilise under normal loads before sustained high-RPM driving or towing.
• Inspect Engine Oil Every 2,500 km for the First 10,000 km: Check the dipstick for milky or frothy oil, which indicates residual coolant contamination not fully flushed during repair.
• Schedule a Cooling System Pressure Re-Test at 5,000 km: A pressure test at 110 to 140 kPa confirms the head gasket and associated seals are holding as the engine settles.
• Use Only OEM-Specified Coolant at a 50:50 Concentration: Tap water introduces mineral deposits that build scale inside coolant passages, reducing cylinder head heat transfer efficiency over time.

Zenfo Auto Services provides head gasket replacement for the complete range of Jeep models at our Musaffah workshop.
